93(x)一系列有源倍頻器Mi-Wave

推出時候：2024-11-06 17:17:44     搜索：799

Mi Wave的93（x）產品有源倍頻器有力再生利用性優異MMIC電源芯片達到倍頻和縮小。

功能

?高至全波導頻段鋪蓋

?想要低輸入驅動包電平

?較低諧波直流電

?高的輸出公率

應該用

?測試實驗性室

?子應用程序

?原生震蕩器

?5G和6G使用系統性

長沙市立維創展技術十分有限裝修公司商標授權批發商售銷Mi-Wave亳米波物品，Mi-Wave是民用型和軍民融合用直徑波貨品全球性領行者，能帶來了直徑波元件和模塊圖片處理好方法。貨品線歸屬于：變小器、混頻器、衰減器、濾波器、電開關、T/R、wifi天線、漫平面反射鏡等，所帶有幾率到達320GHz。歡迎語詢問。



Model NumberInput Low Frequency (GHz)Input High Frequency (GHz)Output Low Frequency (GHz)Output High Frequency (GHz)Input Power (dBm)Output Power (dBm)Input PortOutput PortDC BiasX Factor
932-10/20/10/SMAF-25101020+11 to 16 nominal, +17 max.+7 to +10 nominalSMA-FeamleSMA-Feamle+8V@105mA,+12V max.2
932AF-20/599/KF13.252026.5400 to +5 nominal, +10 max.20 nominalK-FemaleWR-28 waveguide, UG-599/U Flange+8 V@470mA,+15 V max.2
932KF-10/KF913.251826.5+5 nominal, +10 max+15 nominalK-FemaleK-Female+8 V@82 mA,+15 V max.2
932KF-30/3.5mmF913.251826.5+3 to +5 nominal, +10 max.+31 nominal3.5 mm Female3.5 mm Female+6V@1.35A, +12 V max.2
934BF-10/3838.2512.53350+2 nominal, +5 max.+10 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.250 A,+12V max.4
934BF-13/3838.2512.533500 to +2 nominal, +5 max.+14.5 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.280 A,+12V max.4
934EF-20/3871522.56090+5 to +7 nominal, +12 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6 to +8V@650mA,+12V max.4
934UF-10/383101540600 nominal, +10max.+13 nominalK-Female/SMA- FemaleWR-19 waveguide, UG-383/U-M Flange+6V@143mA,+6V max.4
934VF-10/38512.518.755075+5 nominal, +10 max.+11 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+8V@270mA,+15V max.4
934VF-15/38512.518.755075+5 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+10V@321mA,+15V max.4
936EF-10/38710156090+4 nominal,+10 max.+13 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@237mA,+12V max.6
936EF-20/387H10156090+5 nominal, +10 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@540mA,+12V max.6

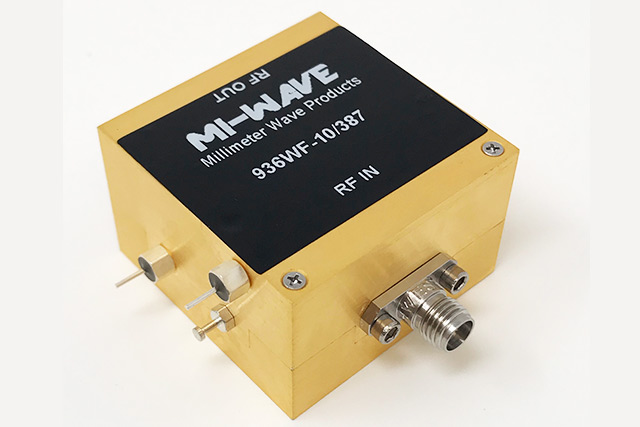

936WF-10/38712.518.3375110+6 nominal,+10 max.+10 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@309mA,+12V max.6
936WF-15/38712.518.3375110+5 to+10 nominal, +15 max.+16 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+12V@500mA,+15V max.6
936WF-20/38712.518.3375110+5 to+10 nominal, +15 max.+20 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@410mA,+15V max.6
938EF-16/387H7.511.256090+3 to +5 nominal, +10 max.+17 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+8V@590mA,+12V max.8
938W-80/106/15/3888.911.7880106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@180mA,+15V max.9
938WF-10/3871013.2580106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@180mA,+12V max.8
