?CINCON封裝形式式 AC-DC 電源模塊

發布信息時間：2023-05-30 17:04:43     看：1380

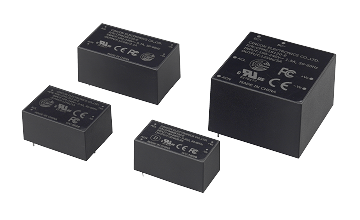

CINCON封裝式AC-DC電源具有多種多樣規格尺寸，頻率范圍從6W到100W。所有產品均已全部通過IEC62368-1、UL62368-1、EN62368-1及其EN55032B類和CIRSS/FCCB類驗證。針對CINCON的部分最新款號，它們滿足EN60335-1標準規定，并且具有200的特殊性能%峰值負載性能。這種特殊的200%峰值負載性能滿足客戶在短期內突發性能源需求，現在能夠避免選擇其它超規格產品，降低成本和規劃空間/占用空間損耗。

廣東市立維創展科技發展是CINCON電源模快模快的批發商廠商商，保證CINCON電源開關組件的DC-DC切換器、AC-DC電源模塊、LED電等，新產品原廠入口，質理有保障，較強價額強勢，祝賀質詢

具體詳情了解到CINCON電源線請點擊事件：//www.yhme.cn/article/2177.html


ITE/Industrial On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM04S

4W

85-305

3.3V, 5V, 12V, 15V, 24V

Altitude 5000m
Class II

1.56x0.764x0.720
(PCB-mount)
1.62x0.83x0.787
(Encapsulated)
1.95.x0.71x0.689
(Wafer)

CFM06S

6W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

Altitude 5000m
Class II

1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer)

CFM12S

12W

90-264

5V, 9V, 12V, 15V, 24V

Altitude 5000m
Approval EN60335-1
Class II

1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer)

CFM20S

20W

90-264

5V, 12V, 15V, 24V, 48V

Altitude 5000m
Meets EN60335-1
Class II

2.382x1.300x0.906
(PCB-mount)
2.482x1.402x0.933
(Encapsulated)
3.000x1.300x0.831
(Wafer)

CFM25S

25W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II

2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer)

CFM36S

36W

90-264

5V, 12V, 15V, 24V, 48V

Altitude 5000m
Class I & Class II

3.00x1.50x1.100
(PCB-mount)
3.10x1.60x1.134
(Encapsulated)
3.00x1.50x1.000
(Wafer)

CFM41S

40W

90-264

12V, 15V, 24V, 36V, 48V, 5V

2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II

2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer)

CFM61S

60W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Class II

2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer)

ITE/Industrial Brick Power

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CBM70S

70W

90-264

12V, 24V, 36V, 48V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

2.28x2.40x0.67

zCBM150S

150W

90-264

12V, 24V, 28V, 36V, 48V, 54V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

4.60x2.40x0.78

CBM101S

100W

90-264

12V, 24V, 28V, 36V, 48V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

4.60x2.40x0.67

PDF700S

700W

90-264

12V, 24V, 28V, 48V, 56V

Low Profile
Built-in PFC
Altitude 5000
Class I


PFC750

750W

90-264

390V

Low Profile
Built-in PFC
Altitude 5000


Medical Class II On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM21

20W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

2MOOP

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)

CFM21M

20W

90-264

5V, 9V, 12V, 15V, 24V

2MOPP
Low Profile
Altitude 5000m

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)
