?Mi-Wave調整衰減器

發布公告時：2023-05-26 16:49:42     打開網頁：1443

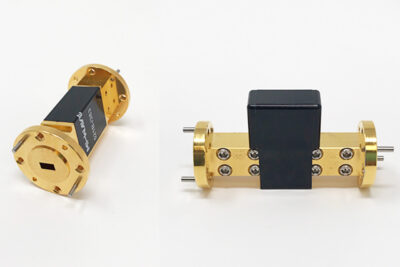

Mi-Wave的521和524系列的動態平衡衰減器適宜于公分波和微波通信微波射頻應用區域區域，動態平衡衰減器可能為8至220GHz的哪幾個波導頻段展示高至30dB的衰減值。幾大維持衰減器全是在約定的正確的平率下矯正，精黏度在0.1dB或1%以里。

Mi-Wave的521和524系列產品保持穩定性衰減器app領域行業要波導同軸數據線中更準的保持穩定性衰減規則。各種的摸塊皆是H空間圖形安全衰減器。衰減器適合于將啟動因與不支持的負載電阻效用屏蔽著。Mi-Wave的521和524類型不穩定性衰減器還適于于戶外拓展培訓馬力測試絲機的做工作頻段和精準定位降低信息源輸入輸出電平。

電路設計板上和規定衰減器實用來減掉交流電工作電壓、耗散工率和提升相匹配電容。在檢查無線數據時，衰減器墊或適應器實用來將無線數據概率減掉一款 相等量以重啟檢查，或保護區檢測的設備抗御已經毀損的無線數據降幅的會影響。衰減器還實用來能夠降低界面SWR（駐波比）來“匹配”特質電阻值。

Mi-Wave是商用機型和軍工企業用分米（mm）波的設備亞洲領航者者，能能出具分米（mm）波元器件封裝和組件搞定規劃。的設備線包括：變小器、混頻器、衰減器、濾波器、控制開關、T/R、無線、光反射鏡片等，所其中包含率自由高達320GHz.

廣州市立維創展技術比較有限工司認證代理加盟業務員Mi-Wavemm毫米波產品的，的歡迎咨詢了解。。

具體詳情分析Mi-Wave請鼠標單擊：//www.yhme.cn/brand/52.html


Model

Band Type

Power Handling

Minimum Frequency (GHz)

Maximum Frequency (GHz)

Attenuation (dB)

Power Handling (CW)

RF Ports

521K-3/595

K-Band

LOW

18

26.5

3

0.3

WR-42 Waveguide UG-595/U Flange

521K-6/595

K-Band

LOW

18

26.5

6

0.3

WR-42 Waveguide UG-595/U Flange

521K-10/595

K-Band

LOW

18

26.5

10

0.3

WR-42 Waveguide UG-595/U Flange

521K-20/595

K-Band

LOW

18

26.5

20

0.3

WR-42 Waveguide UG-595/U Flange

521K-30/595

K-Band

LOW

18

26.5

30

0.3

WR-42 Waveguide UG-595/U Flange

524K-3/595

K-Band

HIGH

18

26.5

3

150

WR-42 Waveguide UG-595/U Flange

524K-6/595

K-Band

HIGH

18

26.5

6

150

WR-42 Waveguide UG-595/U Flange

524K-10/595

K-Band

HIGH

18

26.5

10

150

WR-42 Waveguide UG-595/U Flange

524K-20/595

K-Band

HIGH

18

26.5

20

150

WR-42 Waveguide UG-595/U Flange

524K-30/595

K-Band

HIGH

18

26.5

30

150

WR-42 Waveguide UG-595/U Flange

521A-2/599

Ka-Band

LOW

26.5

40

2

5

WR-42 Waveguide UG-599/U Flange

521A-3/599

Ka-Band

LOW

26.5

40

3

5

WR-42 Waveguide UG-599/U Flange

521A-5/599

Ka-Band

LOW

26.5

40

5

5

WR-42 Waveguide UG-599/U Flange

521A-10/599

Ka-Band

LOW

26.5

40

10

5

WR-42 Waveguide UG-599/U Flange

521A-20/599

Ka-Band

LOW

26.5

40

20

5

WR-42 Waveguide UG-599/U Flange

521A-30/599

Ka-Band

LOW

26.5

40

30

5

WR-42 Waveguide UG-599/U Flange

524A-3/599

Ka-Band

HIGH

26.5

40

3

75

WR-42 Waveguide UG-599/U Flange

524A-6/599

Ka-Band

HIGH

26.5

40

6

75

WR-42 Waveguide UG-599/U Flange

524A-10/599

Ka-Band

HIGH

26.5

40

10

75

WR-42 Waveguide UG-599/U Flange

524A-20/599

Ka-Band

HIGH

26.5

40

20

75

WR-42 Waveguide UG-599/U Flange

524A-30/599

Ka-Band

HIGH

26.5

40

30

75

WR-42 Waveguide UG-599/U Flange

524B-3/383

Q-Band

HIGH

33

50

3

20

WR-22 Waveguide UG-383/U Flange

524B-5/383

Q-Band

HIGH

33

50

5

20

WR-22 Waveguide UG-383/U Flange

524B-10/383

Q-Band

HIGH

33

50

10

20

WR-22 Waveguide UG-383/U Flange

524B-20/383

Q-Band

HIGH

33

50

20

20

WR-22 Waveguide UG-383/U Flange

524B-30/383

Q-Band

HIGH

33

50

30

20

WR-22 Waveguide UG-383/U Flange

521B-3/383

Q-Band

LOW

33

50

3

4

WR-22 Waveguide UG-383/U Flange

521B-5/383

Q-Band

LOW

33

50

5

4

WR-22 Waveguide UG-383/U Flange

521B-10/383

Q-Band

LOW

33

50

10

4

WR-22 Waveguide UG-383/U Flange

521B-20/383

Q-Band

LOW

33

50

20

4

WR-22 Waveguide UG-383/U Flange

521B-30/383

Q-Band

LOW

33

50

30

4

WR-22 Waveguide UG-383/U Flange

521U-3/383

U-Band

LOW

40

60

3

3

WR-19 Waveguide UG-383/U-M Flange

521U-6/383

U-Band

LOW

40

60

6

3

WR-19 Waveguide UG-383/U-M Flange

521U-10/383

U-Band

LOW

40

60

10

3

WR-19 Waveguide UG-383/U-M Flange

521U-20/383

U-Band

LOW

40

60

20

3

WR-19 Waveguide UG-383/U-M Flange

521U-30/383

U-Band

LOW

40

60

30

3

WR-19 Waveguide UG-383/U-M Flange

524U-3/383

U-Band

HIGH

40

60

3

10

WR-19 Waveguide UG-383/U-M Flange

524U-6/383

U-Band

HIGH

40

60

6

10

WR-19 Waveguide UG-383/U-M Flange

524U-10/383

U-Band

HIGH

40

60

10

10

WR-19 Waveguide UG-383/U-M Flange

524U-20/383

U-Band

HIGH

40

60

20

10

WR-19 Waveguide UG-383/U-M Flange

524U-30/383

U-Band

HIGH

40

60

30

10

WR-19 Waveguide UG-383/U-M Flange

521V-3/385

V-Band

LOW

50

75

3

2

WR-15 Waveguide UG-385/U Flange

521V-6/385

V-Band

LOW

50

75

6

2

WR-15 Waveguide UG-385/U Flange

521V-10/385

V-Band

LOW

50

75

10

2

WR-15 Waveguide UG-385/U Flange

521V-20/385

V-Band

LOW

50

75

20

2

WR-15 Waveguide UG-385/U Flange

521V-30/385

V-Band

LOW

50

75

30

2

WR-15 Waveguide UG-385/U Flange

524V-3/385

V-Band

HIGH

50

75

3

10

WR-15 Waveguide UG-385/U Flange

524V-6/385

V-Band

HIGH

50

75

6

10

WR-15 Waveguide UG-385/U Flange

524V-10/385

V-Band

HIGH

50

75

10

10

WR-15 Waveguide UG-385/U Flange

524V-20/385

V-Band

HIGH

50

75

20

10

WR-15 Waveguide UG-385/U Flange

524V-30/385

V-Band

HIGH

50

75

30

10

WR-15 Waveguide UG-385/U Flange

521E-3/387

E-Band

LOW

60

90

3

1

WR-12 Waveguide UG-387/U Flange

521E-6/387

E-Band

LOW

60

90

6

1

WR-12 Waveguide UG-387/U Flange

521E-10/387

E-Band

LOW

60

90

10

1

WR-12 Waveguide UG-387/U Flange

521E-20/387

E-Band

LOW

60

90

20

1

WR-12 Waveguide UG-387/U Flange

521E-30/387

E-Band

LOW

60

90

30

1

WR-12 Waveguide UG-387/U Flange

524E-3/387

E-Band

HIGH

60

90

3

10

WR-12 Waveguide UG-387/U Flange

524E-6/387

E-Band

HIGH

60

90

6

10

WR-12 Waveguide UG-387/U Flange

524E-10/387

E-Band

HIGH

60

90

10

10

WR-12 Waveguide UG-387/U Flange

524E-20/387

E-Band

HIGH

60

90

20

10

WR-12 Waveguide UG-387/U Flange

524E-30/387

E-Band

HIGH

60

90

30

10

WR-12 Waveguide UG-387/U Flange

521W-3/387

W-Band

LOW

75

110

3

0.1

WR-10 Waveguide UG-387/U-M Flange

521W-6/387

W-Band

LOW

75

110

6

0.1

WR-10 Waveguide UG-387/U-M Flange

521W-10/387

W-Band

LOW

75

110

10

0.1

WR-10 Waveguide UG-387/U-M Flange

521W-20/387

W-Band

LOW

75

110

20

0.1

WR-10 Waveguide UG-387/U-M Flange

521W-30/387

W-Band

LOW

75

110

30

0.1

WR-10 Waveguide UG-387/U-M Flange

524W-3/387

W-Band

HIGH

75

110

3

10

WR-10 Waveguide UG-387/U-M Flange

524W-6/387

W-Band

HIGH

75

110

6

10

WR-10 Waveguide UG-387/U-M Flange

524W-10/387

W-Band

HIGH

75

110

10

10

WR-10 Waveguide UG-387/U-M Flange

524W-20/387

W-Band

HIGH

75

110

20

10

WR-10 Waveguide UG-387/U-M Flange

524W-30/387

W-Band

HIGH

75

110

30

10

WR-10 Waveguide UG-387/U-M Flange

521F-3/387

F-Band

LOW

90

140

3

0.5

WR-8 Waveguide UG-387/U-M Flange

521F-6/387

F-Band

LOW

90

140

6

0.5

WR-8 Waveguide UG-387/U-M Flange

521F-10/387

F-Band

LOW

90

140

10

0.5

WR-8 Waveguide UG-387/U-M Flange

521F-20/387

F-Band

LOW

90

140

20

0.5

WR-8 Waveguide UG-387/U-M Flange

521F-30/387

F-Band

LOW

90

140

30

0.5

WR-8 Waveguide UG-387/U-M Flange

524F-3/387

F-Band

HIGH

90

140

3

5

WR-8 Waveguide UG-387/U-M Flange

524F-6/387

F-Band

HIGH

90

140

6

5

WR-8 Waveguide UG-387/U-M Flange

524F-10/387

F-Band

HIGH

90

140

10

5

WR-8 Waveguide UG-387/U-M Flange

524F-20/387

F-Band

HIGH

90

140

20

5

WR-8 Waveguide UG-387/U-M Flange
