WENTEQ超底嗓聲擴大器
公布的用時：2022-02-22 17:33:06 觀看：1573
低噪聲放大器是低噪聲系數的放大器，通常用來作為各種無線電通信接收機的高頻率或中頻率前置放大器，及其高靈敏度電子器件測試儀器的放大電路。

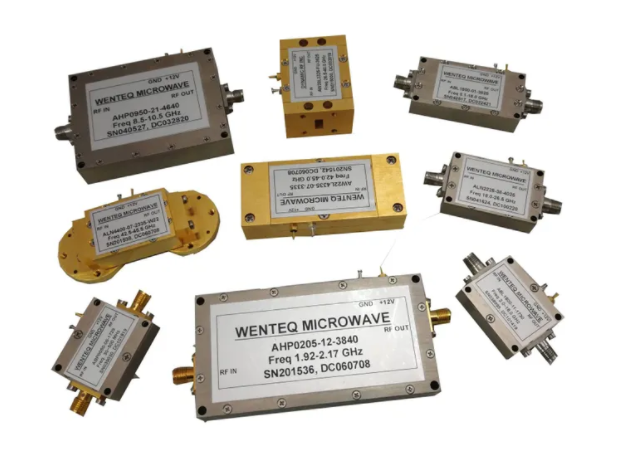

WENTEQ過低燥音擴大器是想要過低的技術應用中頗具成本投入作用的很好處理辦法范文燥音擴大。一些列出產品規格為室內溫度結論。WENTEQ勉勵顧客向各位提高他倆的實際的指定標準要求，盡量各位要提高顧客所用要的增加器。
貨品亮點：
成品所覆蓋的作業頻率比率為100MHz至50GHz；
極低噪音污染、高收獲、噪音污染比率低至0.5dB，收獲高達模型50dB；
做工作溫差使用范圍-40~+85°C；
體積小、直接費用低；
SMA母頭I/O或ps插件接入；
WENTEQ以超高環境噪聲帶寬微波射頻拖動器好車輛為少數民族特色，并作為圓形器、底部隔離器、裝載網絡終端等好車輛，WENTEQ物品以高返修率，獲取亞洲專業市場的認為，就是一家殿堂級的微波通信射頻微波通信廠家，WENTEQ以高不靠譜的產品設備功效，現在收獲諸多新加坡與美國中國航空工程工程、中國國防工業化工程項目。
珠海市立維創展自動化是WENTEQ的生產商商，通常保證WENTEQ護膚品包涵弧形器、分隔器、環境下終端門店等，護膚品正品美國進口，的質量可以保障，到貨時期短，定價長處，熱烈歡迎咨訊。
商品詳情理解WENTEQ請點擊：//www.yhme.cn/brand/29.html
模型工具 | 聲音頻率(GHz) | 背景噪聲因子，典例值 (dB) | 瓦數增益值，（dBm） | 增加收益寬闊度，(dB) | 導入/導出電阻駐波比 | 轉換P1dB最大功率，(dBm) | 電流直流電壓 (v) | 直流變壓器瞬時電流 (mA) |
ALN007-29-3315B | 0.06-0.08 | 1.5 | 33 | ±0.25 | 1.35:1/1.5:1 | 15 | +24.0 | 120 |
ALN007-57-2820B | 0.05-0.09 | 2 | 28 | ±0.35 | 1.35:1/1.5:1 | 15 | +24.0 | 120 |
ALN0025-08-5208NW | 0.24-0.26 | 0.8 | 52 | ±0.10 | 1.5:1 | 12 | +24.0 | 150 |
ALN0025-40-3006 | 0.2~0.3 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +12.0 | 110 |
ALN0025-40-4006 | 0.2~0.3 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +12.0 | 120 |
ALN0035-29-3006 | 0.3~0.4 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +12.0 | 110 |
ALN0035-29-4006 | 0.3-0.4 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +12.0 | 120 |
ALN0050-40-3006 | 0.4~0.6 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0050-40-4006 | 0.4~0.6 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0060-33-3006 | 0.5~0.7 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0060-33-4006 | 0.5~0.7 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0090-22-3406 | 0.8-1.0 | 0.6 | 34 | ±0.50 | 1.35:1/1.6:1 | 13 | +10-+12.0 | 60 |
ALN0090-22-4306 | 0.8~1.0 | 0.6 | 43 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0090-22-5006 | 0.8~1.0 | 0.6 | 50 | ±0.5 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0120-42-3306 | 0.95~1.45 | 0.6 | 33 | ±0.50 | 1.5:1 | 15 | +10-+12.0 | 100 |
ALN0120-42-4206 | 0.95~1.45 | 0.6 | 42 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0120-42-5006 | 0.95~1.45 | 0.6 | 50 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0131-14-2505F | 1.215-1.40 | 0.5 | 25 | ±0.75 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0131-14-3505F | 1.215-1.40 | 0.5 | 35 | ±0.75 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0138-40-3208NW | 1.10-1.65 | 0.8 | 35 | ±0.50 | 1.5:1 | 13 | +30.0 | 100 |
ALN0138-40-5307N | 1.10-1.65 | 0.7 | 53 | ±0.50 | 1.5:1 | 13 | +15.0 | 140 |
ALN0140-29-3206 | 1.2~1.6 | 0.6 | 32 | ±1.0 | 1.5 | 16 | +10-+12.0 | 50 |
ALN0140-29-4007 | 1.2~1.6 | 0.7 | 40 | ±0.50 | 1.5:1 | 12 | +10-+12.0 | 100 |
ALN0140-29-5007 | 1.2~1.6 | 0.7 | 50 | ±1.0 | 1.5 | 12 | +10-+12.0 | 100 |
ALN0165-18-4207 | 1.5~1.8 | 0.7 | 42 | ±1.0 | 1.6:1 | 12 | +10-+12.0 | 120 |
ALN0195-11-3007 | 1.7~2.2 | 0.65 | 30 | ±1.0 | 1.7 | 16 | +10-+12.0 | 60 |
ALN0195-11-4007 | 1.7~2.2 | 0.7 | 40 | ±1.0 | 1.6 | 12 | +10-+12.0 | 130 |
ALN0195-11-5007 | 1.7~2.2 | 0.7 | 50 | ±1.25 | 1.8:1 | 12 | +10-+12.0 | 130 |
ALN0230-26-2607 | 2.0~2.6 | 0.7 | 26 | ±1.0 | 2 | 12 | +10-+12.0 | 55 |
ALN0230-26-4007 | 2.0~2.6 | 0.7 | 40 | ±1.0 | 2 | 12 | +10-+12.0 | 95 |
ALN0230-26-4807 | 2.0~2.6 | 0.7 | 48 | ±1.0 | 2.0:1 | 16 | +10-+12.0 | 140 |
ALN0250-40-3216 | 2.0-3.0 | 1.6 | 32 | ±0.5 | 1.5:1/1.5:1 | 11 | +12.0 | 140 |
ALN0252-10-5307N | 2.40-2.64 | 0.65 | 53 | ±0.5 | 1.5:1/1.5:1 | 13 | +24.0 | 120 |
ALN0260-12-3308 | 2.3-2.9 | 0.85 | 33 | ±0.5 | 1.5:1/1.5:1 | 15 | +12.0 | 100 |
ALN0285-18-2308 | 2.6~3.1 | 0.8 | 23 | ±0.75 | 1.6:1 | 15 | +10-+12.0 | 55 |
ALN0285-18-3508 | 2.6~3.1 | 0.8 | 35 | ±0.75 | 1.6:1 | 15 | +10-+12.0 | 130 |
ALN0325-15-2808 | 3.0~3.5 | 0.8 | 28 | ±0.75 | 1.5:1 | 10 | +10-+12.0 | 40 |
ALN0390-15-4007 | 3.6~4.2 | 0.7 | 40 | ±1.0 | 1.5:1/1.5:1 | 10 | +10-+12.0 | 90 |
ALN0410-34-3012 | 3.4~4.8 | 1.2 | 30 | ±1.0 | 1.5 | 10 | +10-+12.0 | 90 |
ALN0425-12-3007 | 4.0~4.5 | 0.7 | 30 | ±0.5 | 1.5:1 | 10 | +10-+12.0 | 100 |
ALN0425-12-4007 | 4.0-4.5 | 0.7 | 40 | ±1.0 | 1.5:1 | 10 | +10-+12.0 | 120 |
ALN0470-13-3612 | 4.4-5.0 | 1.2 | 30 | ±0.75 | 1.5:1 | 10 | +10-+12.0 | 100 |
ALN0545-13-3809 | 5.1-5.8 | 0.8 | 38 | ±0.25 | 1.7:1/2.5:1 | 20 | +8.0 | 270 |
ALN0560-11-2709 | 5.3-5.9 | 0.9 | 27 | ±0.50 | 1.7:1 | 13 | +8-+15.0 | 50 |
ALN0640-24-3013 | 5.8-7.0 | 1.3 | 30 | ±1.0 | 2.0:1 | 13 | +10-+12.0 | 80 |
ALN0695-04-2212 | 6.8-7.1 | 1.2 | 22 | ±1.0 | 2.0:1 | 10 | +10-+12.0 | 50 |
ALN0825-07-3013 | 7.95-8.55 | 1 | 30 | ±1.0 | 2 | 10 | +10-+12.0 | 80 |
ALN0905-12-3010 | 8.5~9.6 | 1 | 30 | ±1.25 | 2 | 10 | +10-+12.0 | 80 |
ALN1000-10-3010 | 9.5~10.5 | 1 | 30 | ±1.0 | 2 | 10 | +10-+12.0 | 80 |
ALN1110-11-3013 | 10.5~11.7 | 1.3 | 30 | ±1.0 | 2 | 10 | +10-+12.0 | 80 |
ALN1260-30-3015 | 10.7~14.5 | 1.5 | 30 | ±1.25 | 2 | 10 | +10-+12.0 | 80 |
ALN1400-07-3225 | 13.5-14.5 | 2.5 | 32 | ±0.35 | 2.0:1 | 15 | +12.0 | 150 |
ALN1400-21-3825 | 12.5-15.5 | 2.5 | 38 | ±1.0 | 2.0:1 | 13 | +12.0 | 140 |
ALN2225-38-4025 | 18.0-26.5 | 2 | 40 | ±1.0 | 1.8:1/1.8:1 | 13 | +10-+15.0 | 180 |
ALN2300-26-3320 | 20.0~26.0 | 2 | 33 | ±1.0 | 2.0:1 | 12 | +10-+15.0 | 160 |
ALN2600-13-3025 | 25.0~27.0 | 2.5 | 30 | ±1.0 | 2 | 10 | +6-+12.0 | 140 |
ALN3000-07-3325 | 29.0-31.0 | 2.5 | 33 | ±0.35 | 2.0:1 | 13 | +12.0 | 130 |
ALN3175-05-3035 | 31.0~32.5 | 3.5 | 30 | ±1.0 | 2.0:1 | 10 |
| 120 |
ALN3325-41-2235 | 26.5~40.0 | 3.5 | 22 | ±1.0 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 125 |
ALN3325-41-3525 | 26.5~40.0 | 2.5 | 35 | ±1.5 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 110 |
AW28L3325-FU-3625 | 26.5~40.0 | 2.5 | 36 | ±1.5 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 125 |
ALN3325-41-4320 | 26.5~40.0 | 2 | 43 | ±1.0 | 1.7:1/1.7:1 | 12 | +10-+15.0 | 110 |
AW28L3325-FU-4320 | 26.5~40.0 | 2 | 43 | ±1.5 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 125 |
ALN3400-12-3230 | 32.0-36.0 | 3 | 32 | ±1.25 | 1.8:1/1.8:1 | 11 | +10.0 | 130 |
ALN3450-09-3530 | 33.0-36.0 | 3 | 35 | ±1.0 | 1.8:1/1.8:1 | 11 | +10.0 | 160 |
ALN3750-13-3335 | 35.0-40.0 | 3.5 | 33 | ±1.5 | 1.7:1/1.7:1 | 14 | +10.0 | 165 |
ALN4000-10-3530 | 38.0-42.0 | 3 | 35 | ±1.5 | 1.8:1/1.8:1 | 13 | +10.0 | 160 |
ALN4250-12-3535 | 40.0-45.0 | 3.5 | 35 | ±1.5 | 2.0:1/2.0:1 | 16 | +12.0 | 250 |
ALN4300-02-2335 | 42.5-43.5 | 3.5 | 23 | ±0.75 | 2.0:1/2.0:1 | 16 | +12.0 | 280 |
