CINCON車身施工/ DIN導軌30-600W

上傳時間段：2021-01-11 17:00:27 閱覽：1849

CINCON公司提供30W-600 W底盤安裝和DIN導軌DC-DC轉換器，才能集成散熱器可改善熱性能。CINCON底盤安裝/DIN導軌30-600W的特點包括寬輸入范圍、輸入過電壓保護、穩定輸出和連續短路保護。

鄭州市立維創展創新科技比較有限廠家是CINCON電壓模塊電源的分銷城商，提拱CINCON外接電原板塊交流電電壓電、交交流電電壓外接電原、LED電等，原廠品美國進口，性能要確保，單價勝機，祝賀咨詢了解。。

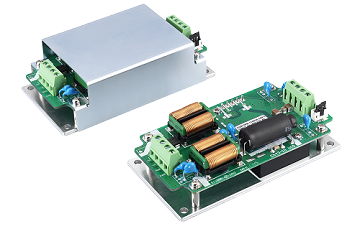

CINCON底盤安裝/ DIN導軌30-600W

12:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W12-72SXX-CMFC(D)	30-50W	14 -160V	5V, 12V, 24V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CHB/CHE50-100W-CM/DIN	100W, 50W, 75W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	Screw Terminal	4.61x2.54x1.03
CQB/CQE50-150W-CM/DIN	100W, 150W, 50W, 75W	18~75V, 43~160V, 66~160V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	Screw Terminal	4.41x1.57x1.98
CQB100W-110SXX-CMFC(D)	100W	43-160V	5V, 12V, 15V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)
CQB150W-110SXX-CMFC(D)	150W	43~160V	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)
CHB200W-110SXX-CMFC(D)	200W	43-160V	5V, 12V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)
CHB300W-110SXX-CMFC(D)	300W	43-160V	3.3V, 5V, 12V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)
CFB600W-110SXX CMFD	600W	43-160V	12V, 24V, 28V, 48V	Screw Terminal Build in filter Baseplate Cooled EN45545-2 EN50155 Compliant	9.45x4.33x1.65

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB150-300SXX CMFC(D)	150W	180~425V	5V, 12V, 15V, 24V, 28V, 48V	Screw Terminal Build in filter EN45545-2 Baseplate Cooled	4.60x2.40x1.26 (CMFC) 4.60x2.49x1.35 (CMFD)
CHB300-300SXX CMFC(D)	300W	180~425V	5V, 12V, 24V, 28V, 48V	Screw Terminal Build in filter EN45545-2 Baseplate Cooled	6.50x3.00x1.52 (CMFC) 6.50x3.09x1.57 (CMFD)
