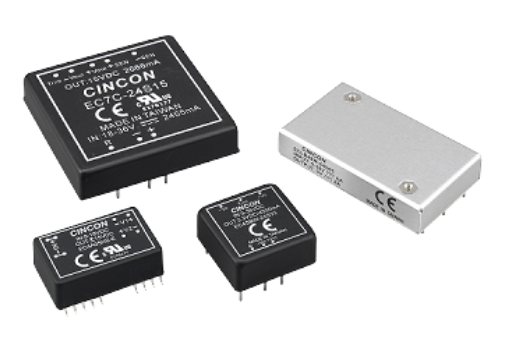

CINCON電源控制器控制器DIP / SMD 3-75W

更新日子：2020-11-13 14:29:38 瀏覽器：2448

CINCON電公司設計和制造了3W-75WDC/DC轉換器，具有工業標準和引腳布置的特點。CINCON電源信息模塊信息模塊DIP / SMD 3-75W更具質量高、任務攝氏度高、讀取超范圍廣的特征。CINCON開關電源還給繁多采用展示了非底部隔離和髙度底部隔離的DC/DC調整器。

成都市立維創展現代科技較少工廠是CINCON電原輸出模塊的分銷系統商，提供了CINCON電源開關適配器引擎直流電變壓器電、直流電電變壓器電源開關適配器、LED供電等，原設備出口，質量管理確認，成本主要優勢，歡迎會咨訊。

寶貝詳情了解一下CINCON電壓請點擊事件：//www.yhme.cn/article/2177.html

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
EC3A	3W	4.5~6V, 9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC3AB	3W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)
EC3A-E	3W	4.5~9V, 9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)
EC4A	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC4AB	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)
EC4A-E	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)
EC6A	7.5W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC2SB	10W	4.7~9V, 9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)
EC4BE	10W	9~18V, 18~36V, 36~72V	5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC4BU	10W	4.7~9V, 9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC7A	10W	9~18V, 18~36V, 36~75V	2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC3SB	15W	9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)
EC5BU	15W	9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC5BE	15W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC7B	20W	9~18V, 18~36V, 36~75V	1.8V, 2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
EC6C	30W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
EC7C	40W	9~18V, 18~36V, 36~75V	2.5V, 3.3V, 5V, 12V, 15V, 3.3/5V, 3.3/±12V, 3.3/±15V, 5/±12V, 5/±15V, ±12V, ±15V	1.5KVdc Isolation EN60950-1	2.00x2.00x0.40(DIP)

4:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3AW	3W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC4AW	6W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC6AW	8W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN50155 Compliant	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC2SBW	10W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC4BW	10W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
	EC6AW-110	10W	43~160V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)
	EC8AW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	1.25x0.80x0.40(DIP24)
	EC3SBW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC5BW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
	EC5C	15W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
	EC1SC	20W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	EN55022 Class A	2.00×1.60×0.45(DIP)
	EC4SBW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC7BW-110	20W	43~160V	5V, 12V, 15V, ±12V, ±15V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
	EC7BW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
NRND	EC3SCW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V	1.5KVdc Isolation EN60950-1	2.00×1.60×0.40(DIP)
	EC5SBW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC9BW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
	ECLB40W	40W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
	ECLB40W-110	40W	43~160V	3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.05x1.20x0.40(DIP)
	ECLB60W	60W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
NEW	ECLB75W	75W	18~75V, 9~36V	5V, 12V, 15V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)

18:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
NEW	EC7BW18	20W	8.5~160V	12V, 15V, 5V, ±12V, ±15V, ±24V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)

High Isolation 6KV

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC4AW-H6	5-6W	9-36V, 18-72V	5V, 12V, +/-12V, +/-15V	6KVdc Isolation EN55022 Class A 5uA Leakage Current	1.25x0.80x0.40 (DIP24)

+/-10% Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3AE	3W	5V, 12V, 24V, 28V, 48V	12V, 15V, 5V, ±12V, ±15V		1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
