?Q20HK-1900R定向耦合器

更重要性能

Q20HK-1900R定向耦合器

頻段：1.8 – 2 GHz合體：20聲貝±0.5聲貝領域性：20dB駐波比：1.3:1添加圖片損耗量：0.3dB最大功率：80瓦考評板722-0006-07-E01定貨期：6-8周

品牌：Electro-Photonics

企業產品寶貝詳情簡單介紹

1800-2000 MHz Directional Coupler

The Q20HK-1900R is a bi-directional coupler with high directivity and high power handling. Q20HK-1900R is a replacement for Soshin P/N GSC311-20M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

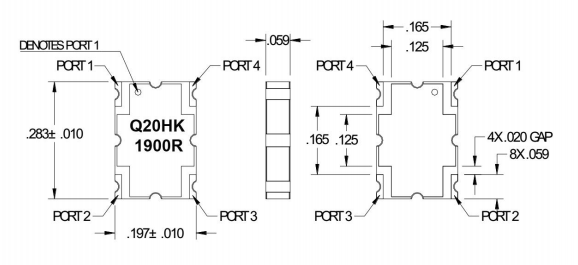

Size: 0.283 x 0.197 inches
Frequency: 1.8 – 2 GHz
Coupling: 20 dB ± 0.5 dB
Directivity: 20 dB
VSWR: 1.3:1
Insertion Loss: 0.3 dB
Power: 80 W
Evaluation board 722-0006-07-E01
