Q3XG-3000R?寬帶混合耦合器

首要叁數

Q3XG-3000R寬帶混合耦合器

頻段：2000-4000兆赫電率：50瓦放衰減：0.22 dB隔離防曬度：23分貝駐波比：1.18進貨周期性：6-8周

品牌：Electro-Photonics

軟件寶貝詳情介召

Features

2000 – 4000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
MMDS, WLAN, WiMax, WiBro, WiFi, ISM, LTE Band
Tape and Reel Option

Specifications

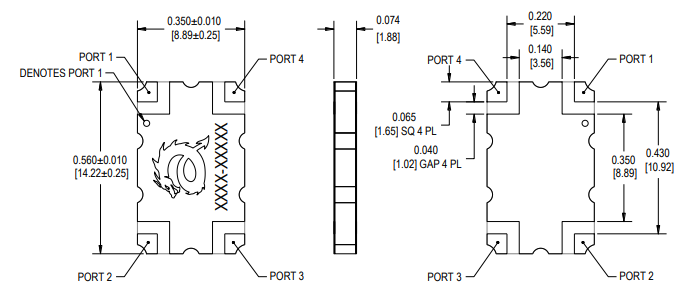

Size: .560 x .350 inches
Frequency: 2000-4000 MHz
Power: 50 W
Insertion Loss: .22 dB
Amplitude Balance: ± .55
Isolation: 24 dB
VSWR: 1.18
Phase Balance: ± 3
