800-1000 MHz Directional Coupler
The Q10HK-900R is a bi-directional coupler with high directivity and high power handling. Q10HK-900R is a replacement for Soshin P/N GSC301-10M0900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…
Specifications

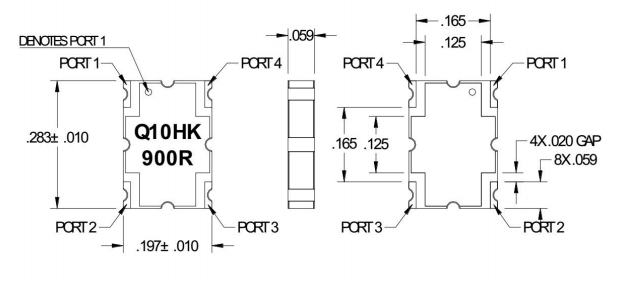

- Size: 0.283 x 0.197 inches
- Frequency: 0.8 – 1 GHz
- Coupling: 10 dB ± 0.5 dB
- Directivity: 16 dB
- VSWR: 1.4:1
- Insertion Loss: 0.4 dB
- Power: 80 W
- Evaluation board 722-0006-07-E01
